Nano 3

Backup Navigation. Flight Recorder.

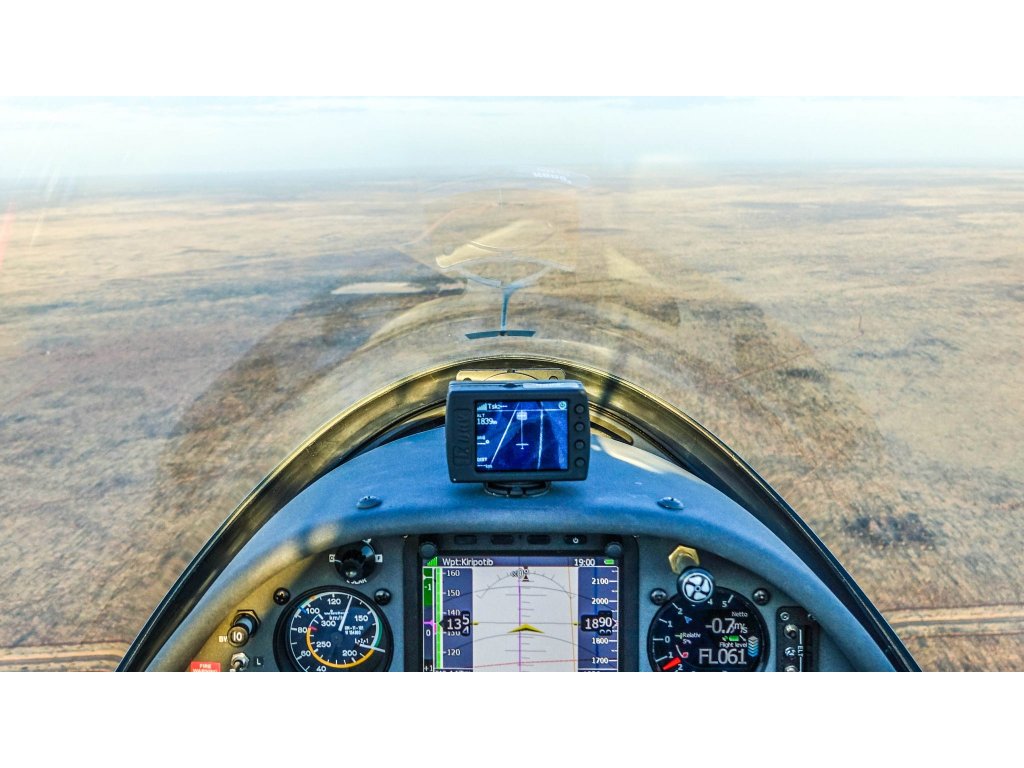

The Nano3 is an extremely small size IGC flight recorder with QVGA screen, which you can use also as a backup navigation system, even for flights longer than 10 hours.

Waypoint and Task Mode.

Never get lost by using a Waypoint mode and Task mode.

Near List.

Select a landable field from the Near List and filter them by the distance, name or bearing.

FLARM mode. Declare a Task to Flarm.

Shows FLARM and PCAS traffic if a FLARM is connected to the Nano3. It is possible to send a task declaration from Nano3 to Flarm/PowerFLARM devices.

USB. BLUETOOTH. GPS.

Bluetooth module, 56 channel GPS module built-in! Cable connectivity through a mini USB.

Airspace

No more stressful airspace situations. Simply check your position related to the closest airspace.

Size And Weight

• Height: 66 mm
• Width: 43 mm
• Depth: 28 mm
• Weight: ~76 g

Flight Recorder Specification

• High-level IGC specification
• 2048-bit digital signature

Recording

• Advanced engine noise level recording (also for JET engines)
• Automatic power down after landing (can be set by user)
• Start logging at power on (for paragliders or pedestrians)

Endurance

• Up to 35 hours with advanced power management
• Up to 16 hours of operation with screen

Flight Storage

• Unlimited storage for flights (+28000 hours at 1 sec interval)
• Flights stored in IGC file format are downloadable through USB, Bluetooth or Wi-Fi

Software Support

Nanoconfig program for creating declaration and system settings (for PC and Android)

LED Indication

Simple signalling LED’s for logger state, battery and GPS signal

Display

• 2.0-inch sunlight readable
• 340-pixel-by-240-pixel resolution
• 262144 Colors

Power And Battery

• Integrated 1800 mAh Li-Ion battery
• Up to 36 hours of operation
• Battery charger via USB port

Sensors

• 56-channel GPS receiver
• High resolution variometer same technology as on V9/S80 vario
• High resolution pressure altitude sensor measures up to 16000m (~52500ft)
• Inertial platform 3 axis accelerometer and 3 axis gyroscope
• Advanced engine noise level sensor (also for JET engines)

Connections

• Plug & Play USB interface (mass storage device)
• USB compatible with all operating systems (MS Win, Linux, Mac OS)
• Serial RS232 interface with NMEA output
• Bluetooth module (Android and iOS)
• Integrated Bluetooth LE4 device (SPP)

Storage

• 4 GBytes of solid state memory
